Ergon

Compack Living® 180
triple-leaf

With a triple-leaf door the lateral clearance needs are about 30% of a single-leaf door

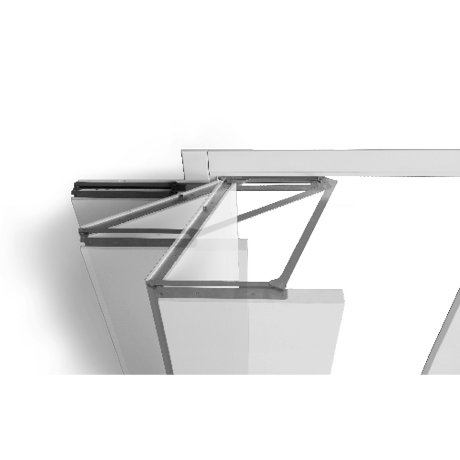

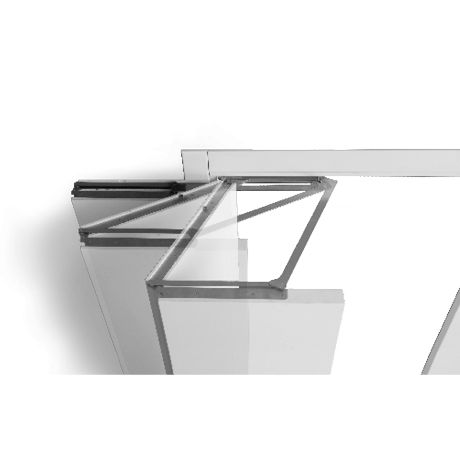

COMPACK LIVING® is the hardware system for folding doors that reduces the clearance needs from the doorway, increasing the usable living space. Using a special patented hinge applied to the top of the door, COMPACK LIVING® 180° allows the leaf to fold laterally against the wall, opening to 180 degrees.

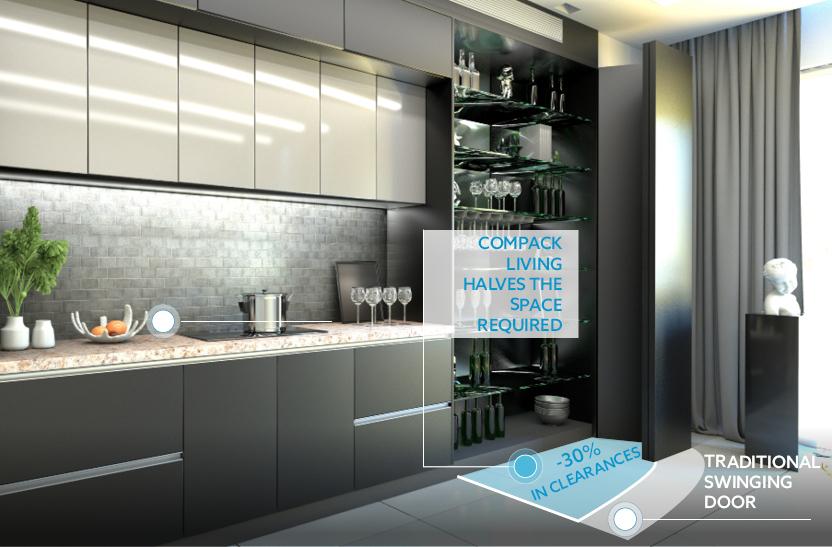

It is easy to see how the space needed during opening is reduced by 50% compared to traditional swing door systems. But what happens on double- or triple-leaf doors?

COMPACK LIVING® 180° can easily be applied on a triple-leaf door system by installing an additional leaf with shared, concealed hinges on the external half-leaf. With a triple-leaf COMPACK LIVING® 180° door, the clearance needs of the open door, leaning against the wall, is reduced to one third of the doorway.

The COMPACK LIVING® hardware system is available with 180-degree opening and can be used, without the need for special masonry works, on leaves and standard frames of any finish. It is suitable for both private and public indoor environments.

With COMPACK LIVING®, the movement of the folding leaf is incredibly stable, comparable to that of traditional swing doors, silent and ergonomic. The jamb on the three sides of the door also guarantees excellent soundproofing. The floor is never affected.

The patented COMPACK LIVING® system arose from the collaboration between Celegon and Massimo Bonetti Design and combines completely Italian technology, design and manufacture, designed to optimise usable living spaces.

schema

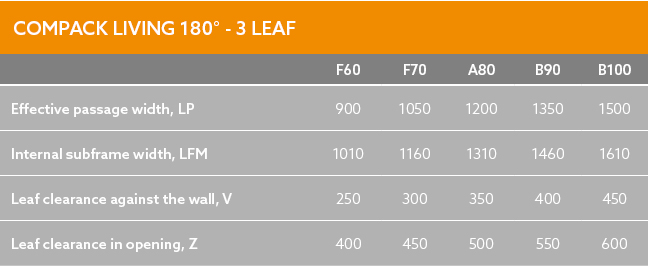

tabella
